Cold Chamber Die Casting
What is Cold Chamber Die Casting?
Cold chamber die casting is a manufacturing process used to produce metal parts with high precision and excellent surface finishes. It involves injecting molten metal into a mold cavity under high pressure. Unlike hot chamber die casting, where the metal is melted and held within the casting machine, cold chamber die casting requires the metal to be melted in a separate furnace and then transported to the casting machine for injection.
Cold Chamber Die Casting Process
Overview:
Melting the Metal
*Separate Furnace: The metal is melted in a separate furnace, which is kept at the required temperature for the specific alloy being used.
Transferring the Molten Metal
*Ladle Transfer: The molten metal is then transported from the furnace to the casting machine using a ladle. This step is crucial to ensure that the metal remains at the right temperature for casting.
Injection into the Mold
*High Pressure Injection: The molten metal is injected into the mold cavity at high pressure using a hydraulic or mechanical piston. The high pressure ensures that the metal fills the mold completely and quickly, capturing fine details and complex geometries.
Cooling and Solidification
*Rapid Cooling: Once the mold is filled, the metal begins to cool and solidify. The mold is usually made of high-strength steel and is designed to dissipate heat rapidly to facilitate quick solidification.
*Mold Opening: After the metal has solidified, the mold is opened, and the cast part is ejected.
Trimming and Finishing
*Removing Excess Material: Any excess material, such as flash or sprues, is trimmed off from the cast part. The part may also undergo further finishing processes, such as machining, sanding, or coating, to achieve the desired specifications and surface quality.
Advantages of Cold Chamber Die Casting
*Suitable for high melting point metals: Cold chamber die casting is suitable for high melting point metal alloys such as aluminum, copper and magnesium, which are difficult to handle in conventional hot chamber die casting. |
*High precision and surface quality: This process produces high precision parts with excellent surface quality, reducing the need for subsequent machining. |
*Reduced porosity and impurities: Because the metal cools and solidifies at lower temperatures, cold chamber die casting helps to minimize the formation of porosity and impurities, improving the quality of the part. |
*Complex geometries: It allows the manufacture of parts with complex geometries without the need for additional processes or assembly. |
*High throughput: Cold chamber die casting machines typically have high throughput and can produce large |

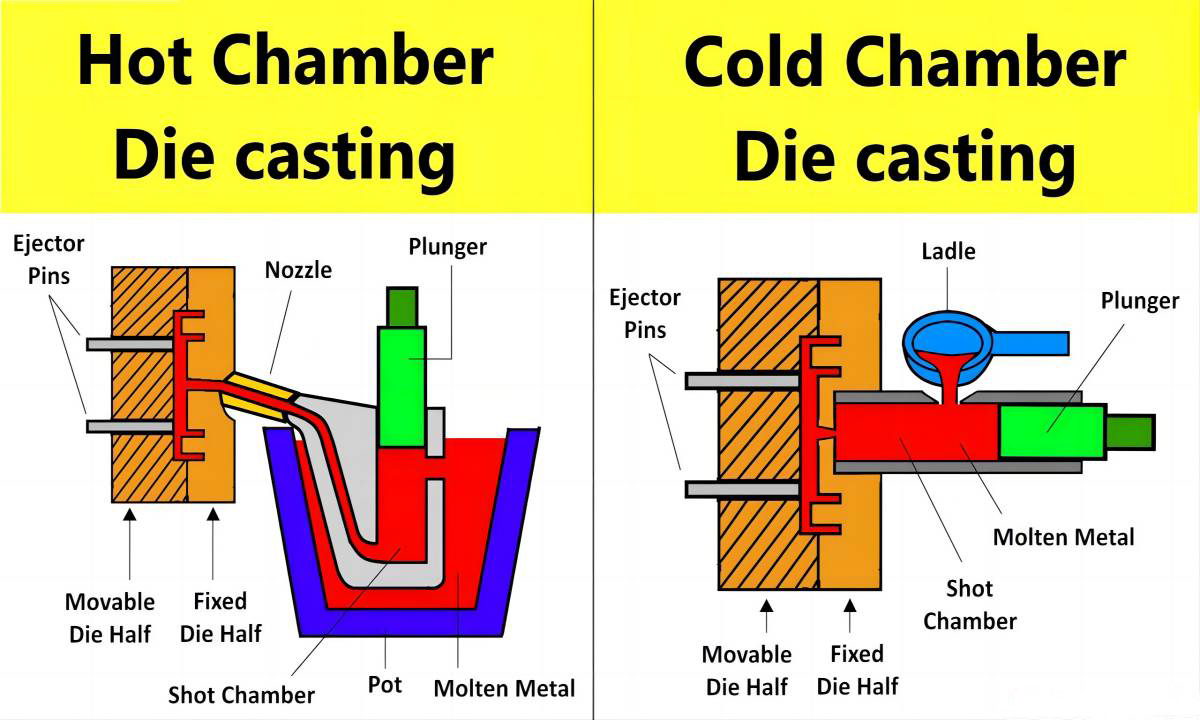

Cold Chamber Die Casting VS Hot Chamber Die Casting
Cold chamber die casting and hot chamber die casting are two different die casting process, they in the principle of operation, applicable materials and application areas there are significant differences.
Cold chamber die casting for high melting point metal alloys, provide high precision and excellent surface quality, suitable for the requirements of high quality and complex geometric shape of the parts manufacturing, such as automotive and electronic.
Hot chamber die casting is used for low melting point metals and is typically used for high volume production, but has lower precision and surface quality than cold chamber die casting and is suitable for relatively less demanding applications.

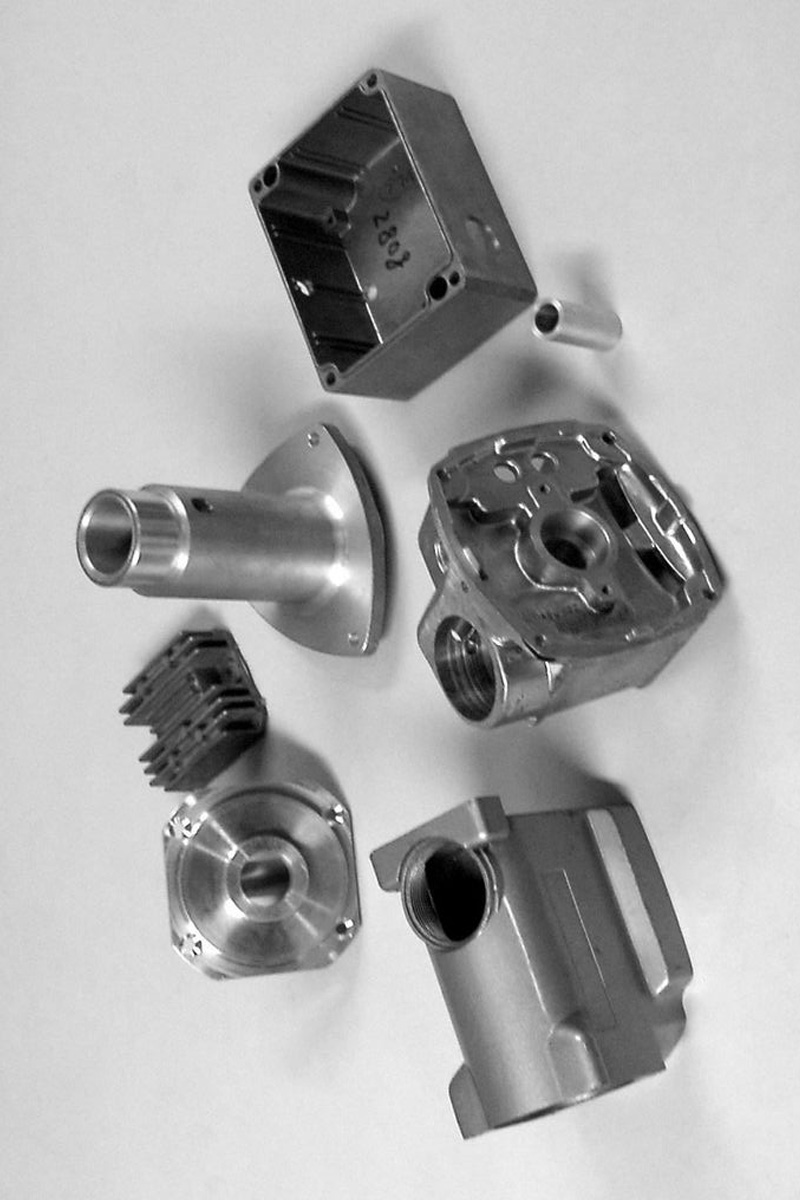

Cold Chamber Die Cast
