Custom Sheet Metal Fabrication for EV Charging Pile Enclosure Project

Project Background

This customer is a new energy enterprise focusing on commercial EV charging station construction.

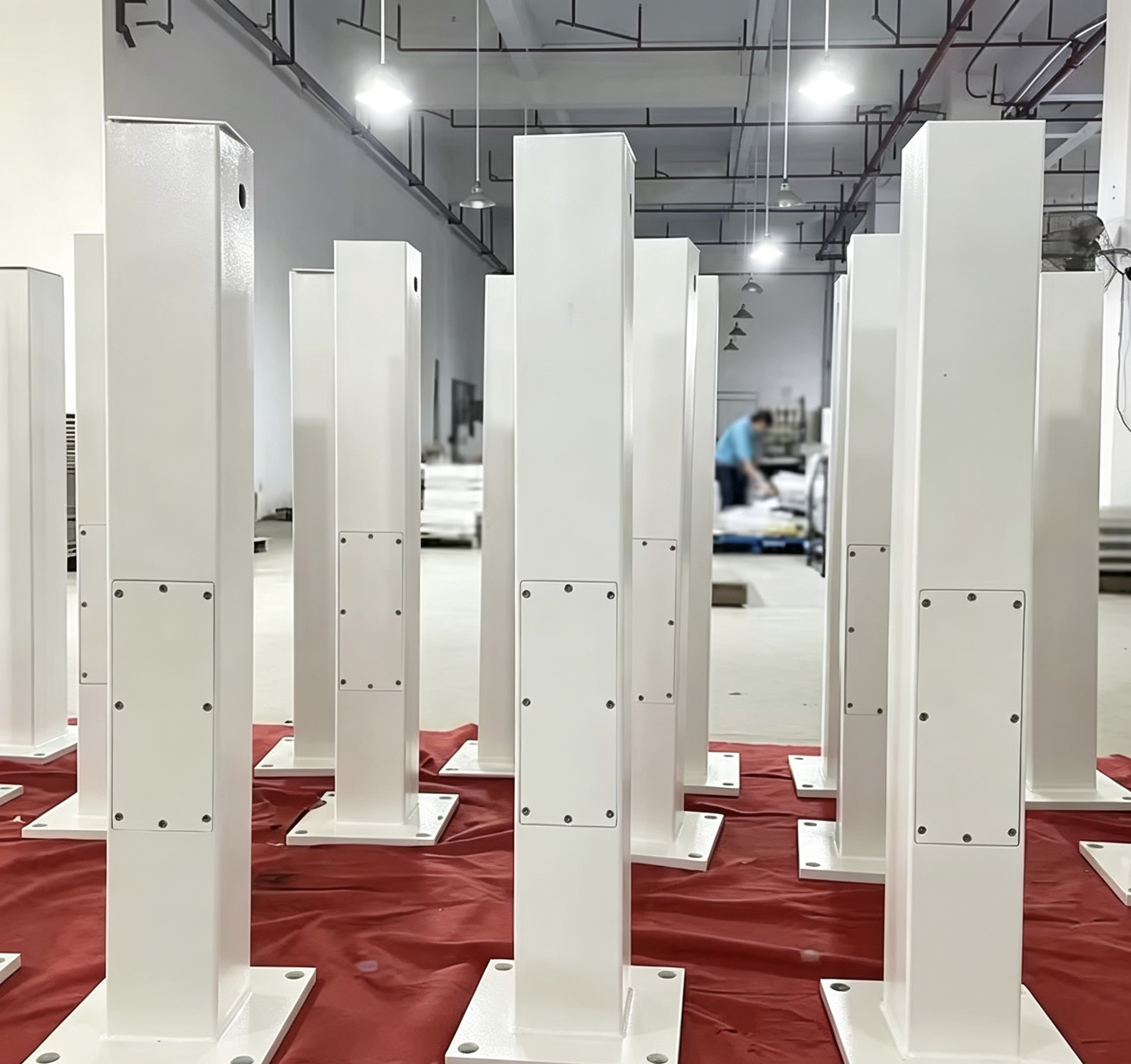

They needed mass-produced charging pile cabinet housings for outdoor public charging stations.

Their pain points:

• Outdoor long-term use requires strong anti-rust & weather resistance;

• Cabinet dimensional tolerance must be precise for internal electrical module assembly;

• Need integrated waterproof, heat dissipation and dust-proof structure inside the shell;

• Large batch stable delivery with controlled production cost.

2. Our Sheet Metal Processing Solution

⭕️Material Selection: Adopt 1.5mm SPCC cold rolled steel for main cabinet body, thickened base plate for load bearing;

    use 304 stainless steel for front panel facing outdoor exposure.

⭕️Precision Processing Flow: Laser cutting → CNC bending → seamless laser welding → stud welding & rivet nut embedding

     → surface grinding & phosphating treatment → outdoor fluorocarbon powder coating.

⭕️ Structural Custom Design: Integral bending cabinet reduces welding seams for flat appearance; sloped top surface for rainwater

      drainage; built-in louver heat dissipation structure to avoid internal overheating; reserved mounting slots for display screen,

      charging gun holes and wiring holes at one time.

3. Project Highlights & Client Benefits

✅ Strict dimensional tolerance ensures perfect fit of internal charging modules, greatly improving assembly efficiency;

✅Fluorocarbon coating passes long-term salt spray test, adapts to outdoor all-weather use for more than 8 years without rust or fading;

✅ Modular cabinet structure simplifies later maintenance and repair of charging piles;

✅ Stable mass production capacity meets the customer’s monthly bulk order demand.

4. Applicable Products

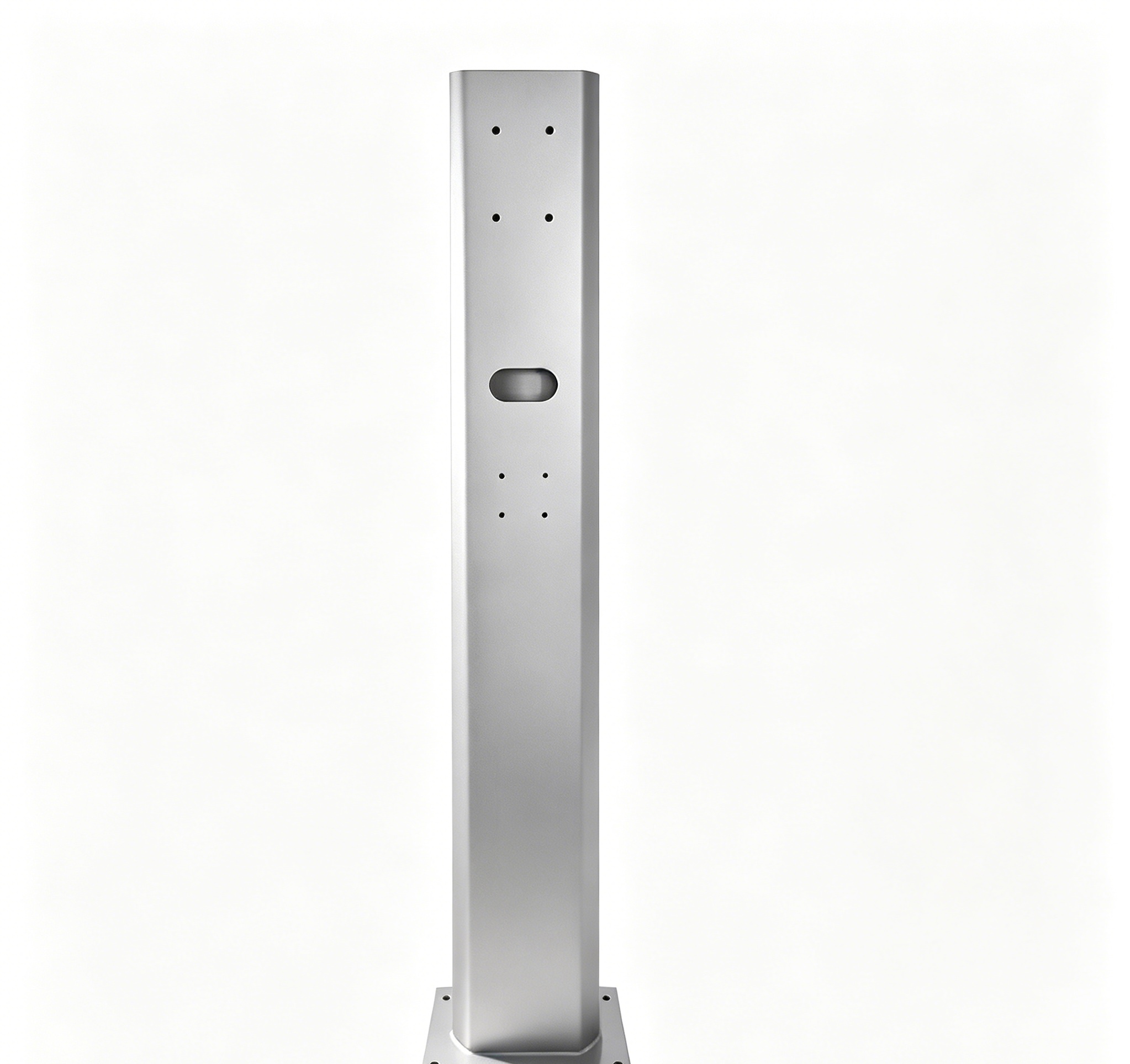

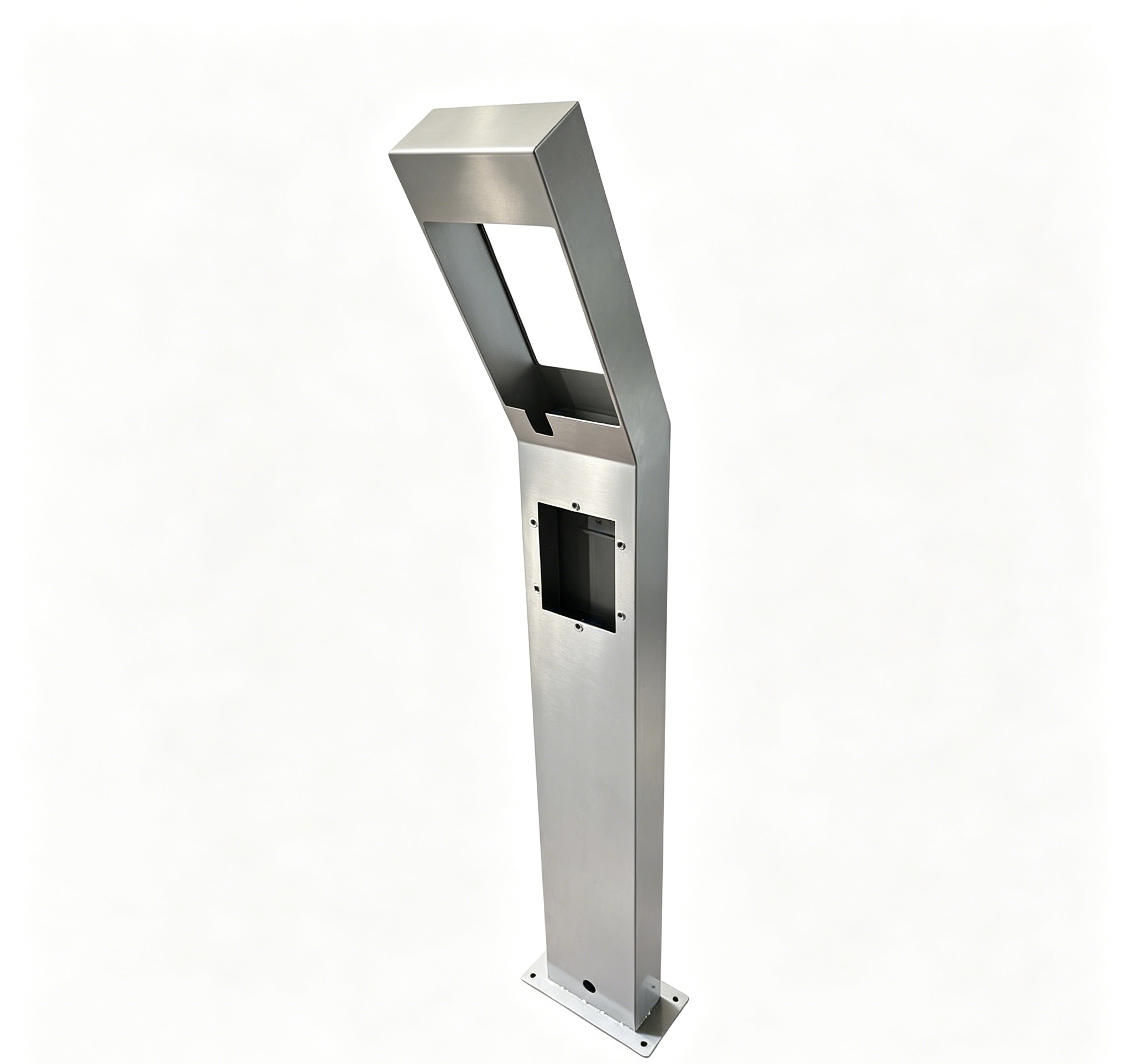

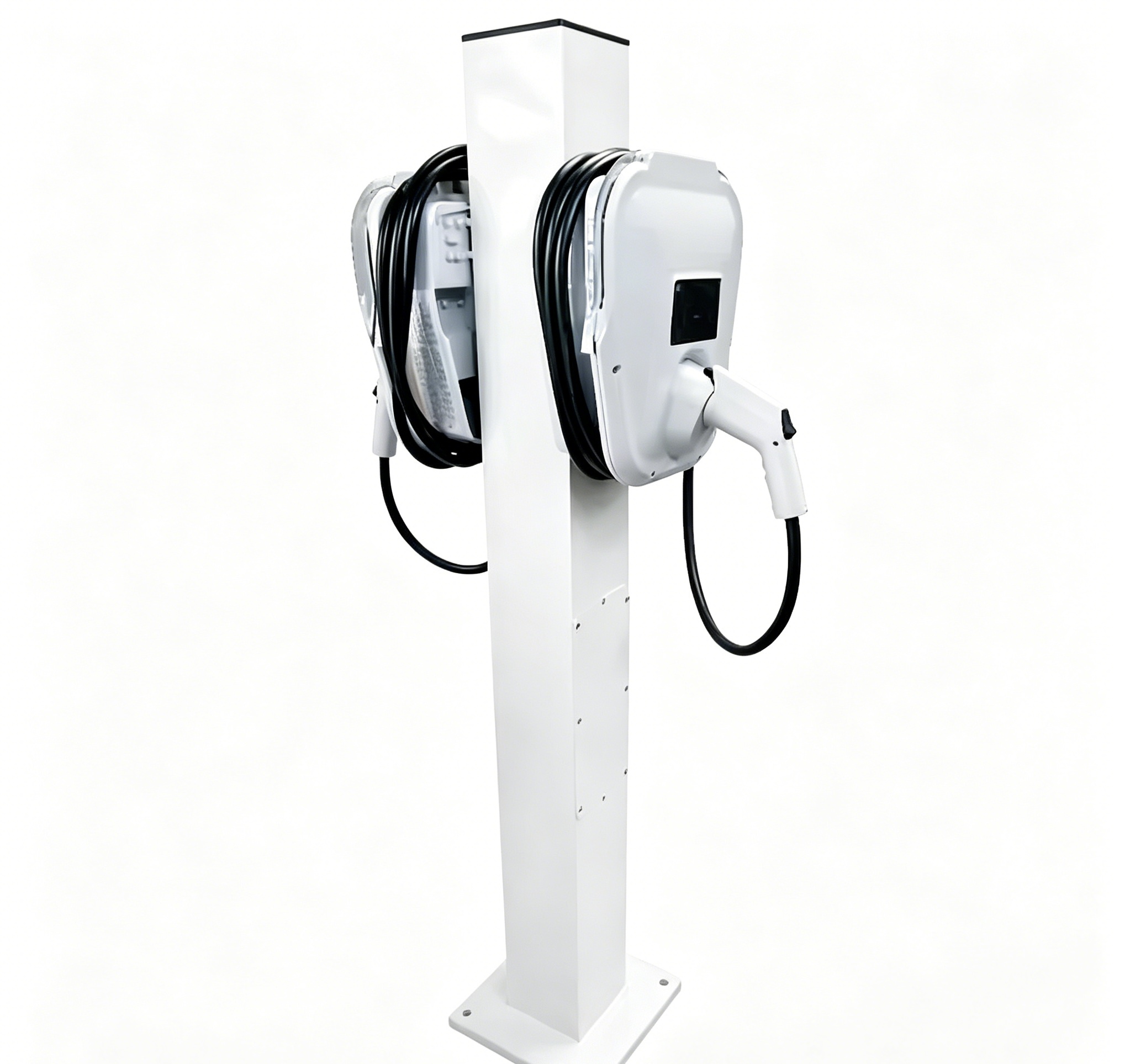

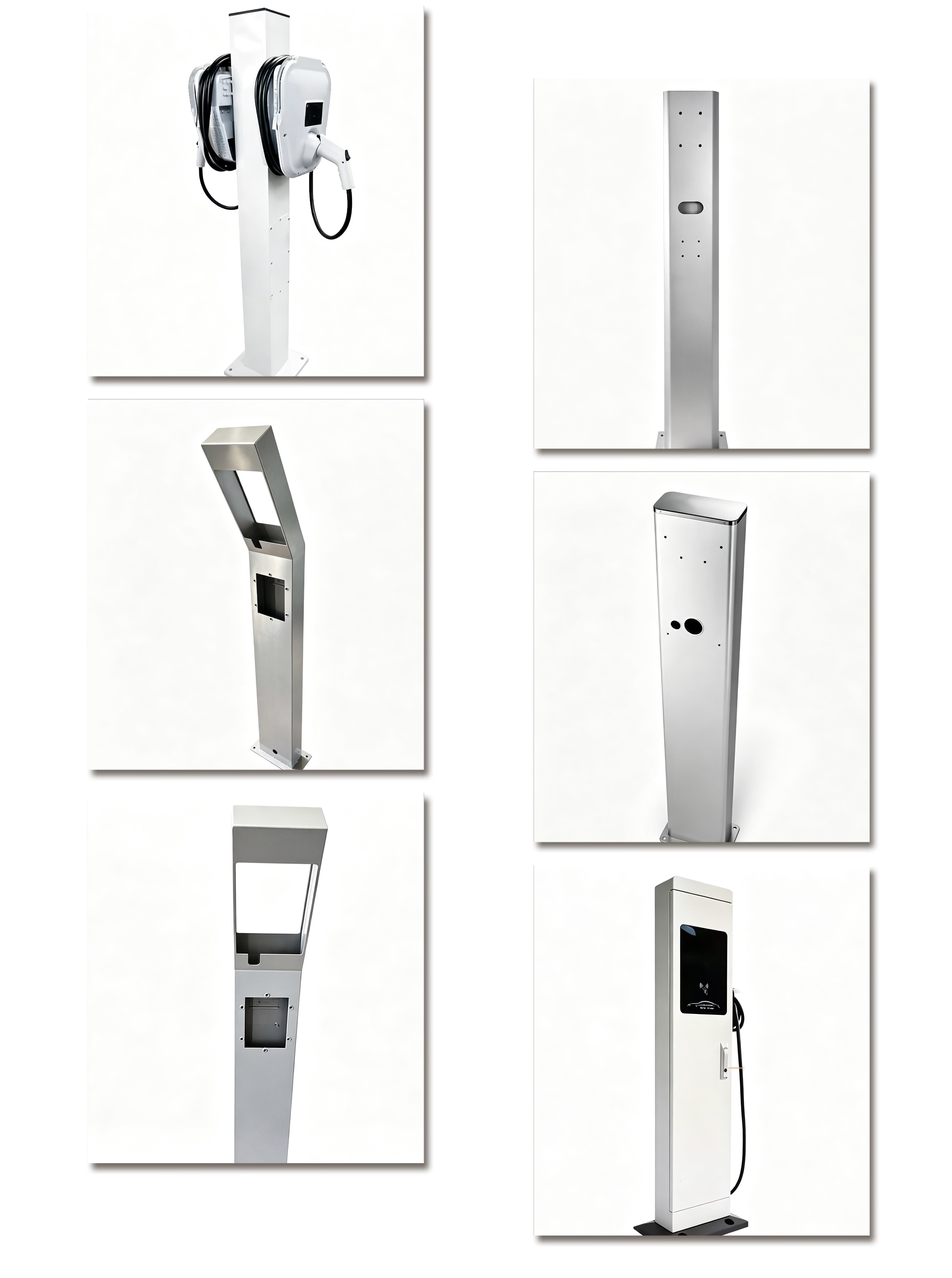

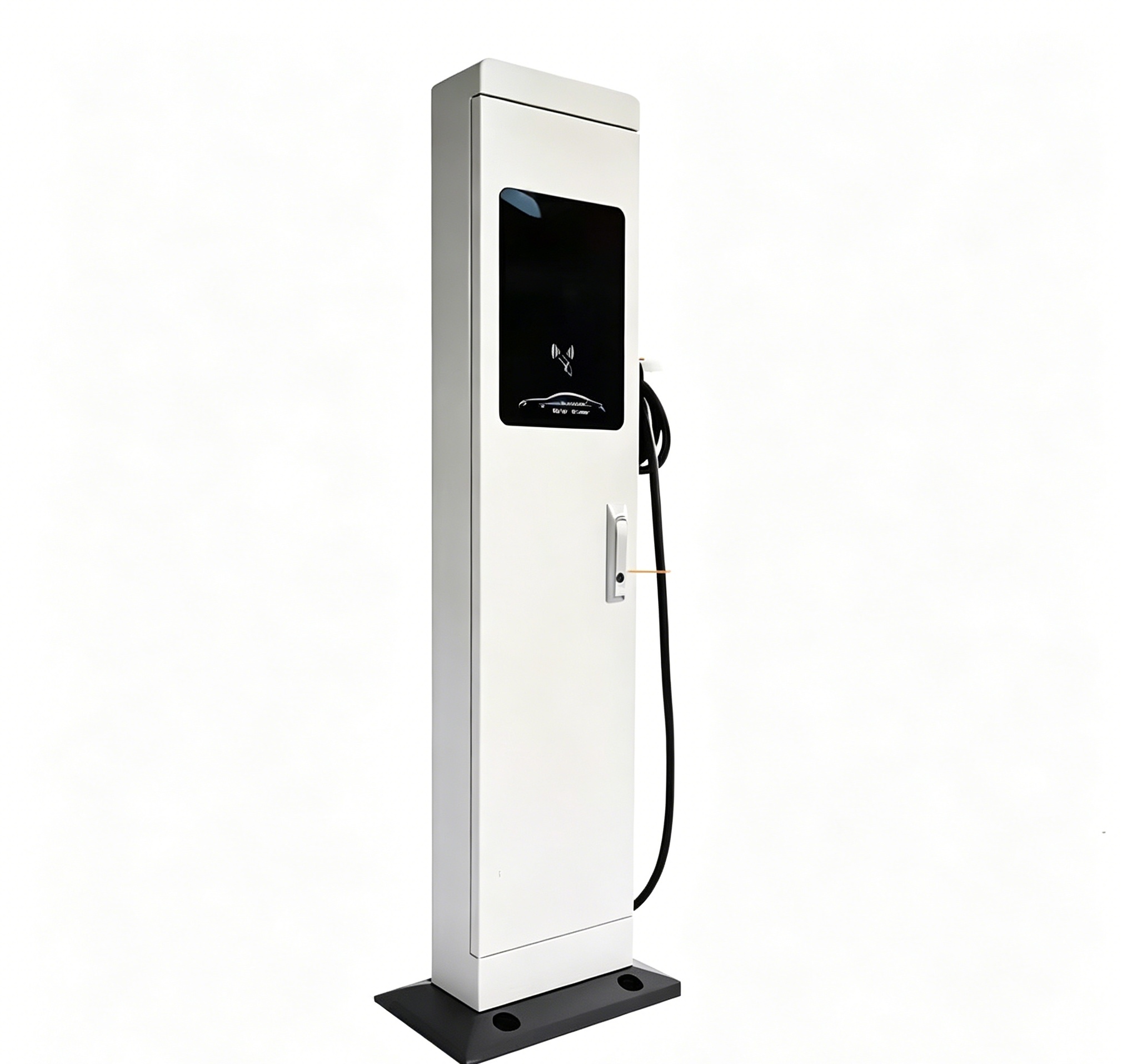

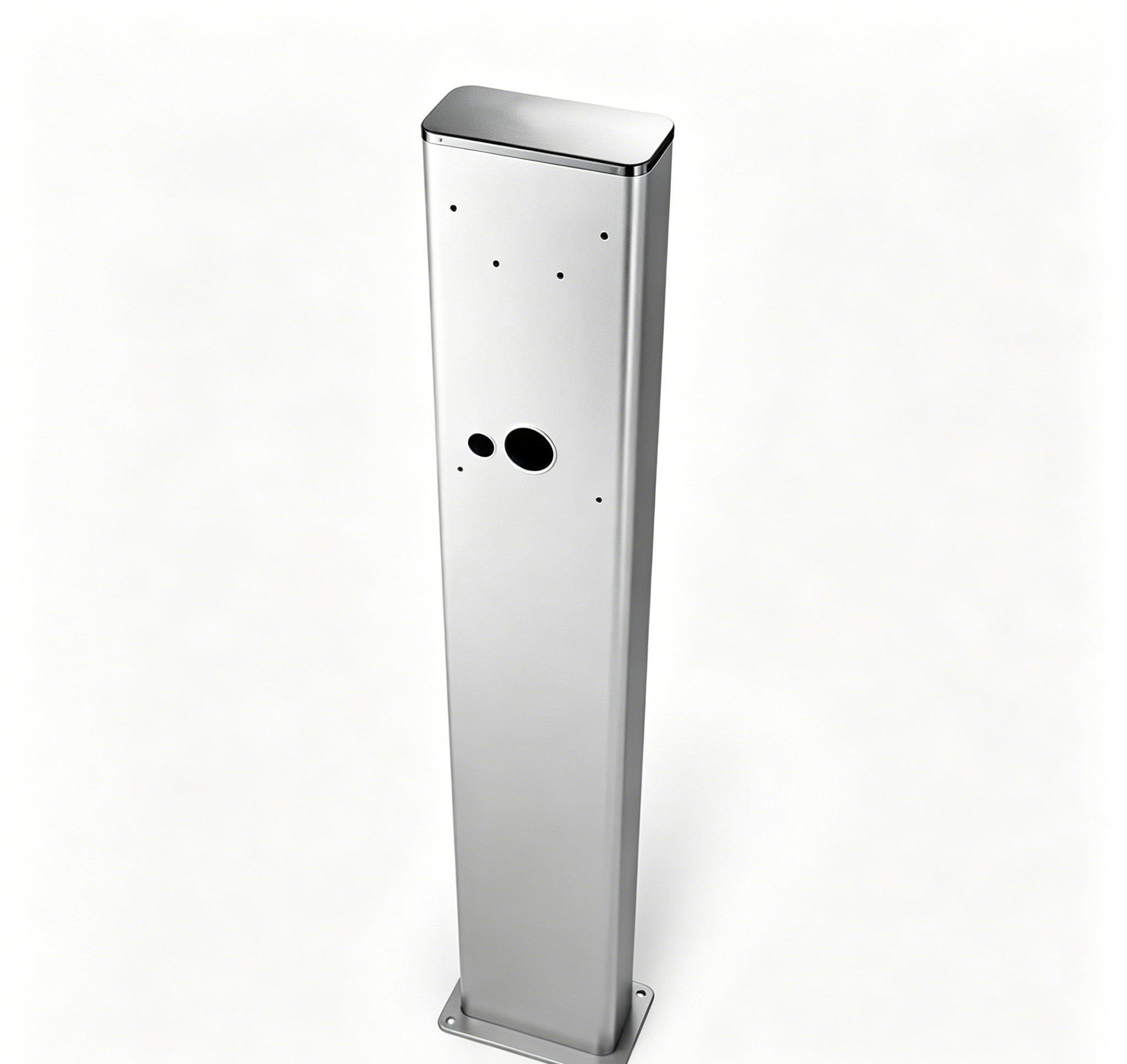

7kW wall-mounted AC charging pile / 60kW-180kW vertical DC fast charging pile / European standard CCS charging pile shell

5.Why Clients Choose Our Sheet Metal Charging Pile Shells

✅ Good surface flatness, no deformation after long-term outdoor placement

✅ Complete waterproof & heat dissipation structure, no need secondary processing by clients

✅ Multiple material options for inland / coastal / high-low temperature different environments

✅ Support small batch trial order + mass production delivery

✅ Accept custom logo, color, size based on clients’ drawings
